Ladur Hot Dip
Ladder Series 200 design is a prefabricated reinforcement for embedment in the horizontal mortar joints of masonry. It is manufactured in 10′ 8″ lengths from wire conforming to ASTM A1064/A1064M, ASTM A82/ A82M

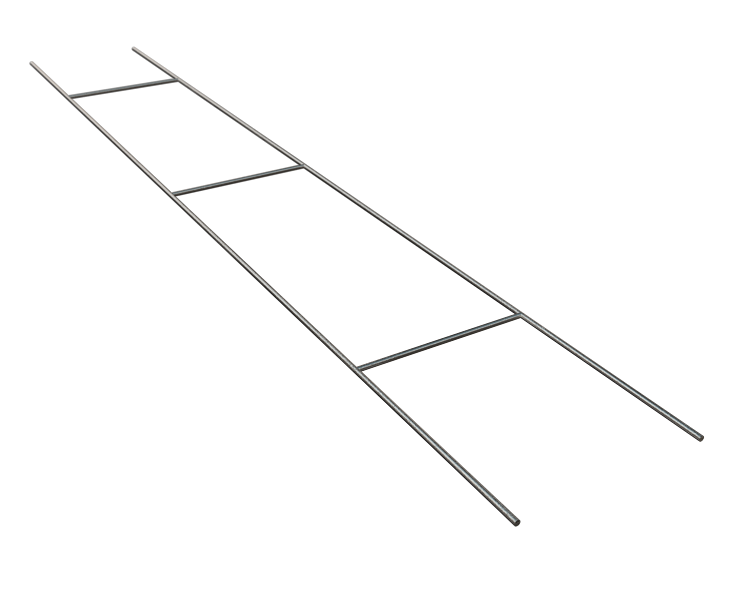

It consists of two or more parallel and deformed longitudinal wires welded to a perpendicular cross wire spaced 16″ O.C. Out-to-out spacing is approximately two inches less than the nominal thickness of the wall.
Ladder Series 200 design is a prefabricated reinforcement for embedment in the horizontal mortar joints of masonry. It is manufactured in 10′ 8″ lengths from wire conforming to ASTM A1064/A1064M, ASTM A82/ A82M
It consists of two or more parallel and deformed longitudinal wires welded to a perpendicular cross wire spaced 16" O.C. Out-to-out spacing is approximately two inches less than the nominal thickness of the wall.
Features:

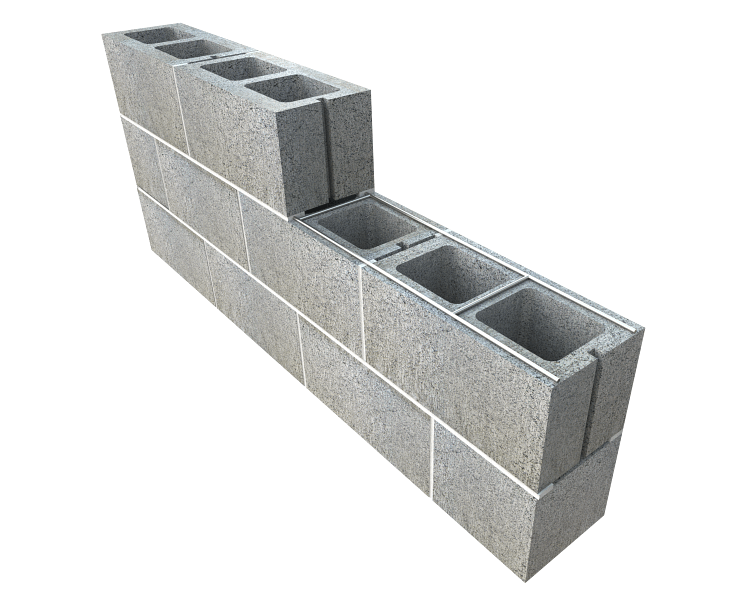

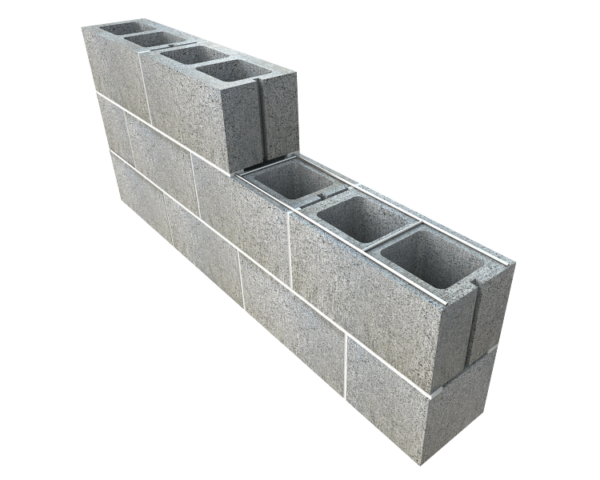

- 16" O.C. ladder design positions cross rods on web of block to allow core clearance.
- Simplifies rebar installation; centering utilizes strength of grout.
- Allows unrestricted flow of grout or loose fill insulation into CMU cells.
- Minimizes re-setting of joint reinforcement around rebar.
- Improves resistance to shrinkage cracking.
- Provides stronger bond with cross rods in web of block.
- Less time devoted to rebar installation, grout pouring.
- Meets ASCE/ACI 530 building code requirements for masonry structures and ASTM A 951 (standard specification for masonry joint reinforcing)
Additional information
| Brand | Wire- Bond |
|---|
